Sub-Zero Stainless Steel Door Loose Handle
Topics:
- Pro, tubular, or curved style handle on stainless steel door is loose
- How to tighten a stainless steel handle
- What size wrench to use to tighten a stainless handle
- Handle keeps becoming loose after repeated attempts to tighten
Troubleshooting:
Note: These steps are for stainless steel wrapped door units only (/S in model number).
This does not apply to custom panels, such as wood, or stainless steel flush inset panels for Overlay units (/O in model number), and Designer series units. For these models, refer to:
- Loose Handle on Sub-Zero Custom Panel
- Classic Series Flush Inset Stainless Steel Panels
- Designer and Designer Wine Stainless Steel Door Panels

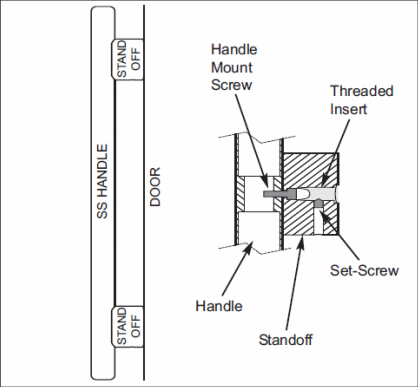

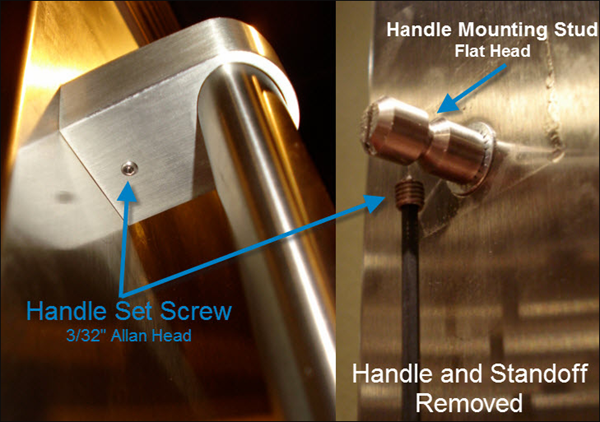

Handle Set Screw Location
- Note that not all Pro handles have a set screw. Refer to Sub-Zero Pro Handle for more information.
Handle Only Is Loose
- Tighten the set screw on the bottom of the handle standoff with a 3/32" Allen wrench. Refer to the images above.
- For Allen wrench information, see Wrench Size Used to Tighten a Sub-Zero Handle.
- There is no direct metric equivalent for a 3/32" Allen wrench. It is between 2-2.5 mm.
- A small amount of blue thread locking Loctite may prevent the set screw from loosening in the future.
- Be careful not to over-tighten the set screw, as the thread is very fine.
- If the set screw is tight, and the handle still rattles, see "Standoff and Handle Are Loose" below.
Standoff and Handle Are Loose
- Remove the handle by removing the set screws from the underside of both handle standoffs. Refer to the images above.
- Once the handle and standoffs are removed from the door, tighten the standoff mounting stud with a flat-head screwdriver.
- A small amount of blue Loctite may also prevent the mounting stud from loosening in the future.
- Tighten the T20 Torx screws on the back side of the standoffs that hold the handle to the standoff.
- Note: Only applicable for Tubular handles.
- Place the handle back onto the standoff mounting studs.
- Tighten the set screws on the bottom of the handle standoffs with a 3/32" Allen wrench.
- A small amount of blue Loctite may prevent the set screw from loosening in the future.
- Be careful not to over-tighten the set screw, as the thread is very fine.
- See also:
Set Screw Is Missing or Needs Replacement
- The set screw for both tubular and pro handles is a #10-32x1/4 SS, cone-3/32" drive.
- Replacement set screw is part number 9015441.
Designer (Formerly Integrated) Units with Stainless Steel Panels
- Designer units with stainless steel panels will need to have the panel removed to tighten the handle.
- Contact Factory Certified Service to schedule an appointment for repair.
UC-24BG, UW-24, and 424 Models
- To tighten the screws on a UC-24BG, UW-24, and 424 handle, the door gasket must be peeled back to reveal the screws that secure the door handle. The panel does not need to be removed. See also:
- Tighten the screws as needed.
Additional Resources:
Answer:
Contact a Factory Certified Parts Distributor to order parts.
If these steps do not resolve the issue, no further troubleshooting advice is available. Contact Factory Certified Service to schedule an appointment for repair.
