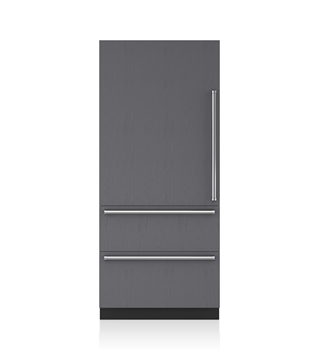

Legacy Model - 36" Designer Over-and-Under Refrigerator/Freezer with Ice Maker - Panel Ready
Owners guides and accessories
Get the most out of your appliances with informative user guides. Discover filters, cleaning kits, and accessories compatible with your specific products.
Replacement and Add-on Accessories
Technical Specifications
Dimensions | 36"W x 84"H x 24"D |
Refrigerator Capacity | 12.8 cu. ft. |
Freezer Capacity | 6.2 cu. ft. |
Door Clearance | 34 1/2" |
Drawer Clearance | 18 3/8" |
Star-K Certified |
Due to a change in insulating materials, this model no longer meets Energy Star requirements. This change will result in net increases of no more than 64 kilowatt hours in energy usage and $8.00 USD in operating cost per annum.
Model Options
IT-36CI-LH | $10,150 |
IT-36CI-RH | $10,150 |
Installation Guides
Electrical Requirements
Electrical Supply | 115 VAC, 60 Hz |
Electrical Service | 15 amp dedicated circuit |
Electrical Location Illustration
Plumbing Requirements
Plumbing Supply | 1/4" OD copper, braided stainless steel or PEX tubing |
Plumbing Pressure | 35–120 psi |
