Ceiling-Mounted and Under-Cabinet Hood Recirculation Application

Topics:

  • Ceiling-Mounted Hood recirculation application
  • Recirculating Filter installation instruction sheet # 828327
  • VC and VU recirculating hood filters, part # 828075
  • VC Ceiling-Mounted Hood recirculating kit
Ceiling-Mounted and Under-Cabinet Hoods with an internal blower can be installed in a recirculation application.

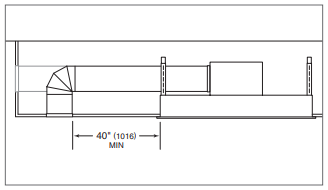

The air discharge must be a minimum of 40" (102) from every side of the hood (Ceiling-Mounted Hood only).
Ductwork and vent cover are not provided.
A recirculating kit, available through an authorized Wolf dealer, is required.
The recirculating kit, part number 828075, includes two recirculating filters.
The recirculating filters should be replaced after 200 hours of use. Refer to Ceiling-Mounted Hood Control Panel Filter Light for more information.

Refer to the product Installation Guide for further installation information.
