L Series Oven Door Removal
Topics:
- How to remove L Series Built-In oven door
- Are Wolf ovens shipped with additional hinge pins?
- L Series Wall Oven hinge pin part number
- What tools are needed to replace a hinge on a L Series Wall Oven?
- What is the oven door hinge pin that is shipped with the oven used for?
- What is the envelope with the door hinge pin for?
- What to do when oven door hinge pin was not used and hinge snapped back into oven
Answer:
It is strongly recommended to have Factory Certified Service remove an oven door.
- Performance may be affected if door is not properly installed.
Materials Required:
- Phillips head screwdriver
- Flat head screwdriver
- Hinge pin
Hinge Pin Information:
A hinge pin, part number 803273, is provided for each oven door of all L Series Wall Ovens.
- The pin is initially shipped with the unit and taped to the inside of the oven door.
- If a replacement hinge pin is needed, contact a Factory Certified Parts Distributor to order parts. Refer to the product Installation Guide for further information.
Hinge pins are required for proper oven door removal.
- Failure to use the hinge pin to remove an oven door may result in damage to the unit.
- If the oven door was removed without the use of the hinge pin, contact Factory Certified Service to repair the product.

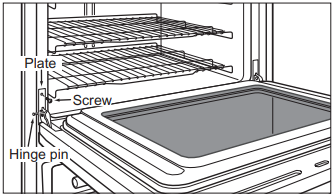

Oven Door Removal:
- Open the door to its fully opened position
- Extract the screw and remove the plate from each side of the door hinges.
- Install the pin through the hole in the left hinge arm.
Oven Door Installation:
- Grasp the oven door on opposite sides and lift the door until the hinges are aligned with the openings in the oven frame.
- Hold the door at about a 30 degree angle from the vertical.
- Slide the hinges into the openings until the bottom hinge arms drop fully into the hinge receptacles.
- Lower the door to the fully opened position and remove the pin from the left hinge arm.
- Open and close the door completely to ensure it is properly installed.
Additional Resources:
- L Series Oven Door Removal
- For other models, see Oven Door Removal.
