Topics:

• Remove Legacy Convection Steam Oven (CSO) door
• Tools needed to remove a door on a CSO
• Knob control and touch control CSO door removal

Answer:

It is strongly recommended to have Factory Certified Service remove an oven door. Performance may be affected if door is not properly installed.

• Legacy Convection Steam Oven (Knob Control) and Legacy Convection Steam Oven (Touch Control) models use the same process for removing the oven door.
• Tools are not required for door removal.

Oven Door Removal:

1. Open door fully.

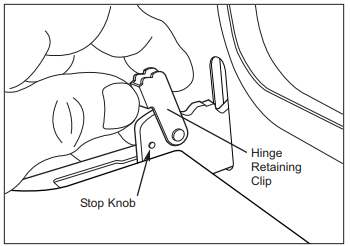

2. Flip hinge retaining clips at each hinge up and back until they hit the stop knobs.

3. Move the door in the closing direction until it stops against the tops of hinge retaining clips.
4. Hold sides of door and continue to close it while lifting up and pulling door away from unit.


Oven Door Installation:

1. Holding the door at a 45° angle, insert the door hinges into the hinge slots.
2. Lower the oven door until the oven door stops.
3. Pull the door to the open position.
4. Rotate the hinge retainer clips on each hinge backward until the hinge retainer clips stop.
5. Test the door.
