Range and Rangetop Riser Dimensions

Topics:

  • What is the depth of the 5", 10", or 20" riser on an R Gas Range, GR Gas Range, Dual Fuel Range, IR Induction Range, SRT Sealed Burner Rangetop, Legacy Dual Fuel Range, Legacy Induction Range, or RT Rangetop?
  • How much weight can the 20" riser shelf support?
  • What is the usable depth of the 20" riser shelf?
  • Is there a riser available for the RT Rangetop?

Answer:

Riser height is measured from the top of the unit's side panel to the top of the riser. Only the 20" riser supports a shelf.

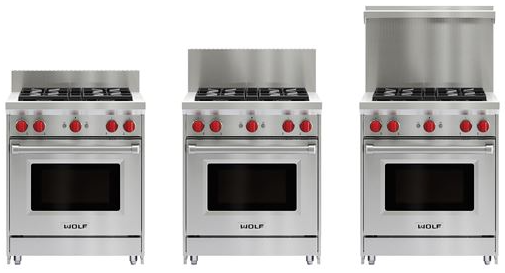

Shown here on the GR Gas Range are the 5" riser, 10" riser, and 20" riser with shelf. Not all riser heights are available for every model.

GR Series Gas Range

  • Risers are approximately 1.10" deep and the same width as the range.
  • The height of the riser will depend on the riser selected: 5" riser, 10" riser, or 20" riser with shelf, as shown above.
    • The shelf on the 20" riser has a usable depth of approximately 8.5", is approximately the same width as the riser, and will support 30 lb. The shelf rests .948" down from the top of the riser, and the height of the side overhang is 2.88".
    • The shelf support screws will be exposed if the 20" riser is installed without the shelf.

Dual Fuel Range

  • Risers are approximately 1.10" deep and the same width as the range.
  • The height of the riser will depend on the riser selected: 5" riser, 10" riser, or 20" riser with shelf, as shown above.
    • The shelf on the 20" riser has a usable depth of approximately 8.5", is approximately the same width as the riser, and will support 30 lb. The shelf rests .948" down from the top of the riser, and the height of the side overhang is 2.88".
    • The shelf support screws will be exposed if the 20" riser is installed without the shelf.

Legacy DF Dual Fuel Range

  • Risers are approximately 0.9" deep and the same width as the range.
  • The height of the riser will depend on the riser selected: 5" riser, 10" riser, or 20" riser with shelf.
    • The shelf on the 20" riser has a usable depth of approximately 8.5", is approximately the same width as the riser, and will support 30 lb. The shelf rests .948" down from the top of the riser, and the height of the side overhang is 2.88".
    • The shelf support screws will be exposed if the 20" riser is installed without the shelf.

Induction Range

  • Current Induction Range models (IR30450, IR36550) do not offer risers as a sales accessory.

Legacy IR Induction Range

  • Legacy IR Induction Ranges only offer a 5" riser.
  • Riser is approximately 0.9" deep and the same width as the range.

SRT Sealed Burner Rangetop

  • Risers are approximately 1.10" deep and the same width as the rangetop.
  • The height of the riser will depend on the riser selected: 5" riser, 10" riser, or 20" riser with shelf.
    • The shelf on the 20" riser has a usable depth of approximately 8.5", is approximately the same width as the riser, and will support 30 lb. The shelf rests .948" down from the top of the riser, and the height of the side overhang is 2.88".
    • The shelf support screws will be exposed if the 20" riser is installed without the shelf.

R Series Gas Range

  • Risers were approximately 1.06" deep and the same width as the range.
  • The height of the riser depended on the riser selected: 5" riser, 10" riser, or 20" riser with shelf.
    • The shelf on the 20" riser had a usable depth of approximately 8.5", was approximately the same width as the riser, and supported 30 lb. The shelf rests .948" down from the top of the riser, and the height of the side overhang is 2.88".
    • The shelf support screws will be exposed if the 20" riser is installed without the shelf.

RT Gas Rangetop

  • RT Rangetops offered a 10 1/2" riser only.
  • The riser was approximately .54" deep, but had a platform at the top of the riser approximately 2" deep. The riser was the same width as the rangetop.

Contact a Local Dealer for further sales information.
