Wolf M Series Standard and Convection Microwave Trim Kit
Topics:
- What is the height of a microwave trim kit?
- Installation instructions for trim kit part number 824643, 824641, 824642, 824640, 827869, 827870
- Instruction sheet part number 9002491, 9018827
- Microwave trim glass trim pieces for MS24, MW24, MC24, and MWC24 trim kits
Answer:
M Series Microwave Trim instructions, linked in the table below, detail the installation process.
- M Series trim kits for Standard and Convection Microwaves MW24, MS24, MWC24, and MC24 are available in black or stainless for 30" width.
- M Series centered stainless trim centers the microwaves in the trim opening and eliminates the door trim, aligning the microwave with the oven.
- Separate polycarbonate trim pieces and trim installation hardware are not available. Order a new trim kit if replacements are needed.
- A new microwave will fit into the old trim kit if replaced.
- Refer to the table below for instruction sheets and part numbers.
- Refer to Reveal, the custom specification tool, for design specifications, including microwave trim overlaps, and opening cutout with the trim.
- Refer to Reveal Specification Tool for more information on using the Reveal online tool.
- Refer to the Wolf Design Guide for further specification information, including opening dimensions.
| Trim | Standard Microwave | Convection Microwave | Instructions |
| Black | 824642* | 824643* | M Series Microwave Trim Installation Note: The right side trim is wider than the left side trim. |
| Stainless (previous) | 824640 | 824641 | M Series Microwave Trim Installation Note: The right side trim is wider than the left side trim. |
| Stainless Centered (current) | 827870* | 827869* | M Series Centered Microwave Trim Installation |
| Stainless Door Trim Only | 826616 | N/A | N/A |
| Trim Dimensions (Black and Stainless) | 18-1/4" High x 29-7/8" Wide | 19-7/8" High x 29-7/8" Wide | - |

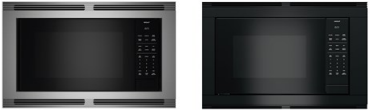

*Current centered trim options look as shown:
Refer to the product Installation Guide for further installation information.
Genuine Sub-Zero, Wolf, and Cove parts are available by calling the Factory Certified Parts Distributor in your area. Only filters and cleaners are available for online purchase in the Sub-Zero, Wolf, and Cove Store. Other parts are not available for purchase online. Use Locator to find the Parts Distributor for your area.
