Sub-Zero Designer Series Freezer Baskets

Topics:

  • Designer (Formerly Integrated) freezer baskets
  • How to remove freezer baskets
  • Remove interior freezer baskets from Designer units

Troubleshooting:

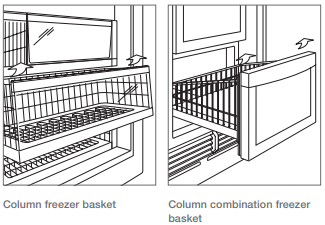

To remove a freezer basket:

  1. Pull the basket open until it stops.
  2. Pull the two plastic tabs behind the bottom two corners of the basket forward, then lift up and out.
    • The tabs are not visible. Place your fingers under the bottom edge on each side of the basket, and pull forward.
    • If the door opening is limited to 90°, the top basket must be removed before removing the middle or lower basket.

To install a freezer basket (column model):

  1. Push the basket slides in.
  2. Align the basket with the slides and push back until it stops.
  3. Press down on the front of the basket to engage the slides.

To reinstall a freezer basket (column combination model):

  1. Fully extend the basket slides.
  2. Align the basket with the slides and push back until the rear of the basket contacts the slide tabs.
  3. Push back and down on the front of the basket to engage the tabs.

Refer to the product Use and Care Guide for further information.

See also, Sub-Zero Over-Under Freezer Compartment Will Not Open or Close.
