Topics:

• Is an air gap device required for dishwasher installation?
• When to use air gap device
• How and where to install air gap device

Answer:

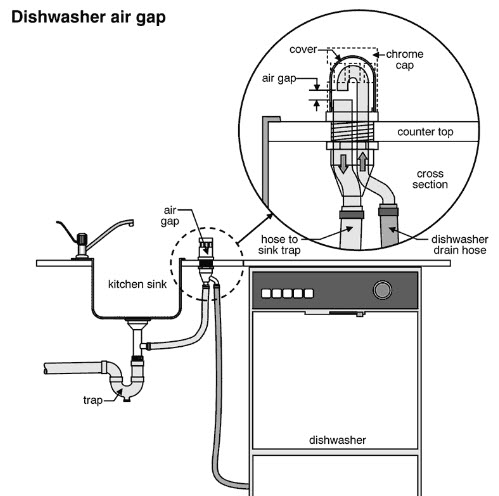

An air gap device is a small pipe that sticks up off the kitchen sink, typically 4-5 inches. It prevents sink drain water from backing up into the dishwasher, possibly contaminating dishes.

• An air gap device is not used in all dishwasher installations and is not provided with the Cove Dishwasher.
• Air gap requirements vary by state. For example, Wisconsin requires an air gap above or below the sink.
  • The air gap device is usually in the rear left or right corner of the sink.
  • Air gaps installed above the sink can be checked for clogs by removing the cap and checking the screen underneath.
  • Refer to the product Installation Guide for further installation information.
• Regularly clean the dishwasher and keep the dishwasher filters clean.
• Dirty filters lead to the air gap becoming clogged.
• To clean an air gap, remove the cover and check for blocked hoses.
