Cove Dishwasher Stainless Steel Door Panel

Topics:

Stainless steel front panel installation instruction sheet, # 9009558
Dimensions of Cove 24" and 60 cm door panels
Are Cove stainless steel door panels magnetic?
Door panel mounting screw, # 9003666
Cove handle dimensions on the stainless steel door panel
Cove logo upside down
Cove DIshwasher stainless steel door panel part # 9019419, 9019420, 9019421, 9019422, 9009547, 9009548, 9009549, 9009550

Answer:

Stainless steel accessory door panels are available through an authorized Cove dealer.

For local dealer information, visit the find a showroom section of our website, coveappliance.com.

Installation

See Cove Dishwasher Door Panel Replacement for installation instructions.
Mounting screws are available separately if needed, using part number 9003666. Part number is for one screw.
A stainless steel kickplate is included with the door panels.

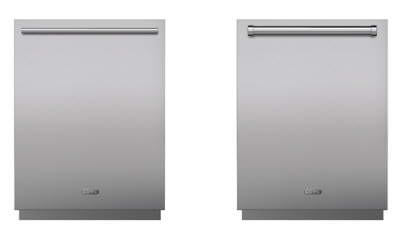

Tubular and Professional Door Handle Panels

Cove stainless steel panels are not magnetic.

High-quality stainless steel used to make the panels is non-magnetic.
High-quality stainless steel has less carbon content and therefore is not magnetic like less expensive, lower quality stainless steel.

Door Panel Dimensions

Toe Kick Height	Panel Width	Handle	Part Number	Dimensions
4"	24"	Tubular	9019419	23-3/4" W x 30-3/8" H x 3/4" D
	24"	Pro	9019420	23-3/4" W x 30-3/8" H x 3/4" D
	60cm	Tubular	9009547	23-3/8" W x 30-3/8" H x 3/4" D
	60cm	Pro	9009548	23-3/8" W x 30-3/8" H x 3/4" D
6"	24"	Tubular	9019421	23-3/4" W x 28-3/8" H x 3/4" D
	24"	Pro	9019422	23-3/4" W x 28-3/8" H x 3/4" D
	60cm	Tubular	9009549	23-3/8" W x 28-3/8" H x 3/4" D
	60cm	Pro	9009550	23-3/8" W x 28-3/8" H x 3/4" D

Handle Dimensions

Handle	Length	Overall Depth*
3/4" Tubular	21-3/4"	1-3/4"
Pro	18-11/16"	2-3/8"

*Overall depth from front of handle to panel front.

Genuine Sub-Zero, Wolf, and Cove parts are available by calling the Factory Certified Parts Distributor in your area. Only filters and cleaners are available for online purchase in the Sub-Zero, Wolf, and Cove Store. Other parts are not available for purchase online. Use Locator to find the Parts Distributor for your area.

Refer to the product Installation Guide for further installation information.
